User experience design for Slicer flexible layouts -- DRAFT2

Back to Flexible Layouts Overview

Same functionality for both users and developers

  • Developers may want to specify a default layout for their module, which includes viewers and multiple UIs.
  • End-Users may want to select from a suite of default specialized layouts OR define their own custom layout.
  • Both users and developers should be able to choose from among the same options.
  • Users and developers will use different tools, and have different UXP.
  • Assume that developers will use Qt Designer.
  • Users will use a Slicer "custom layout" interface.
  • Options include:
    • Set up an initial layout grid
    • Split panes in grid horizontally
    • Split panes in grid vertically
    • Delete panes in grid
    • Add tabs to panes in grid
    • Assign views to panes in grid
    • Assign guis to panes in grid

Below is design draft 2 for Slicer custom layout interface:

Creating a new custom layout

In a custom layout tool, a user creates a new named (e.g. MyCustomLayout) layout and first selects the number of rows and columns they want to begin with by either

  • clicking and dragging on a template or
  • entering parameters into entry widgets

Selecting an initial grid


Splitting a "pane" in the grid



Deleting a "pane" in the grid



Adding tabs to a "pane" in the grid

  • Assume tab indicators don't show up unless we have >=2 defined. (any pane is implicitly a single tab w/o indicator).

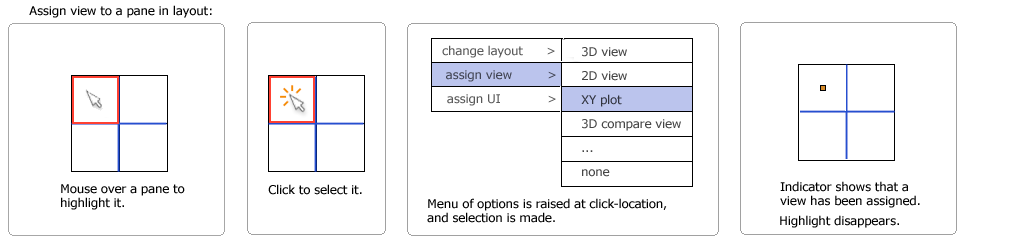

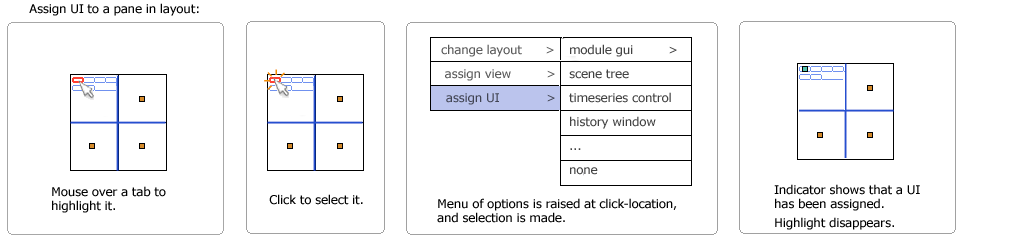

Assigning Content to a "pane" in the grid


  • If a pane has tabs in it, then the boundary of the pane doesn't highlight on mouse-over anymore -- instead the individual tab indicators themselves highlight.
  • We'll need to experiment with this so it's easy for user to select among tabs when assigning content -- may need different style of indicators and different way of selecting among them.
  • Can try the following:
    • Moving in X across the pane indexes tab column.
    • Moving in Y across the pane indexes tab row.
