Module Name

Bubble Maker


General Information

This module builds a label image made of bubbles from a set of fiducials and a vector of radii. It is intended for use in combination with the interactive level-set evolution module, providing initialization for the evolution.

Module Type & Category

Type: CLI Category: Level-Set Segmentation

Authors, Collaborators & Contact

  • Author: Carlos S. Mendoza, Universidad de Sevilla
  • Contact:

Module Description

This module takes as input a set of fiducials, a vector of floats for the radii of the bubbles in physical units, a reference image on which the bubbles will take place, a label for the resulting label map. It provides a label image with spheres centered on the fiducials with radius corresponding to the radii vector position corresponding to the number of the concerned fiducial in the fiducial set.

Examples, Use Cases & Tutorials


Quick Tour of Features and Use

There is only one panel available in this module:

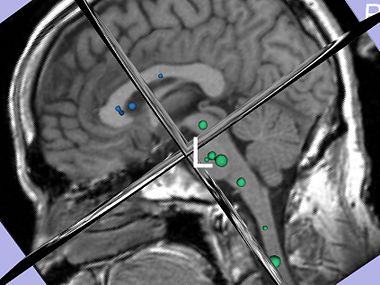

When placing the bubbles for a level-set segmentation, great care has to be taken in order
to produce the optimal seeding.

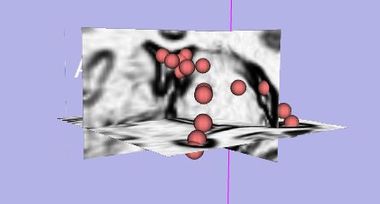

We want to create bubbles that are entirely inside the structure of interest.

A clever way to proceed is placing the bubbles as far away as possible from
suspected leaking points in the feature image (Target Preprocessing  should run before this module).

Known bugs

Follow this link to the Slicer3 bug tracker.

Usability issues

Follow this link to the Slicer3 bug tracker. Please select the usability issue category when browsing or contributing.

Source code & documentation

Customize following links for your module.

Links to documentation generated by doxygen.


This work was developed on financial support from the University of Sevilla, Spain. Most of the development took place in the Surgical Planning Laboratory, Harvard Medical School and Brigham and Women's Hospital, under the supervision of Mr. Steve Pieper Ph.D.
