Introduction and Acknowledgements

Author: Umme Salma Bengali, CARMA Center, University of Utah
Contributors: Alan Morris, Josh Cates, Rob MacLeod, CARMA Center, University of Utah
Contact: Umme Salma Bengali: <email>salma.bengali@carma.utah.edu</email>

The University of Utah Health Sciences

Module Description

This module performs a subtraction of two label maps. This is needed for the CARMA segmentation pipeline to obtain the left atrium epicardium segmentation. This step follows the 2D axial dilate.

Use Cases

This module is meant to be used to create a initial wall segmentation from an endo segmentation and a dilated endo segmentation.

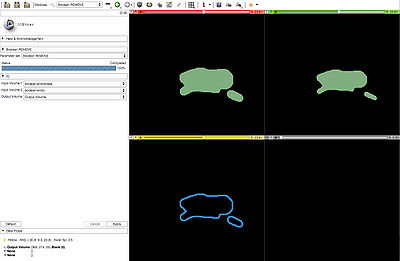

Top row: Dilated endo segmentation and endo segmentation, Bottom row: Subtracted output (epicardial segmentation)

Tutorials

Boolean Remove Filter Tutorial

Panels and their use

  • Input Volume 1 : Select the dilated segmentation
  • Input Volume 2 : Select the endo segmentation
  • Output Volume : The subtraction output

Similar Modules

N/A

References

N/A

Information for Developers

The source code for this module can be found at the CARMA GitHub repository.
