Introduction and Acknowledgements

The module has been developed based on ideas and feedbacks from the community. We would like to especially thank:
 Dr. Olivier Etard, M.D., Ph.D., CHU de Caen.
 Dr. Clément Nathou, M.D., Ph.D., CHU de Caen.
 Dr. Nicolas Delcroix, Ph.D., UMS 3408.
 Dr. Sonia Dollfus, M.D., Ph.D., CHU de Caen, header of ISTS.
 Dr. Csaba Pinter, MSc, Queen's University.
 Dr. Andras Lasso, Ph.D., Queen's University.
If you use this module, please cite the following article: ^{[1]} and ^{[2]}.
Warning:  This extension is under the CeCill license, a copyleft license.
Module Description
This module calculates geodesic path in 3D structure. Thanks to this geodesic path, this module can draw an EEG 1020 system, determine the projected scalp stimulation site (MRI guided brain stimulation without the use of a neuronavigation System) and correct the rTMS resting motor threshold by correction factor.
Terminology
 Mesh A mesh or polygon mesh is a collection of vertices, edges and faces that defines the shape of a polyhedral object in 3D computer graphics and solid modeling.
 Shortest path In graph theory, the shortest path problem is the problem of finding a path between two vertices (or nodes) in a graph such that the sum of the weights of its constituent edges is minimized.
 1020 EEG system The International 1020 system is commonly used for electroencephalogram (EEG) electrode placement and to correlate external skull locations with underlying cortical areas.^{[3]}
Installation
 First, open 3D Slicer
 Open the Slicer Extensions from the icon on the menu bar
 Choose "Geodesic Slicer" module from the list of extensions and click "INSTALL" button.
 Once you restart 3D Slicer, the Geodesic Slicer module should show up on the Modules menu (under Informatics>Geodesic Slicer)
Use Cases
The overall goal is to allow users to find the shortest paths between nodes in a graph and via the Dijkstra's algorithm to make 1020 system. This module can be used for:
 Stimulation in psychiatry: MRI guided brain stimulation without the use of a neuronavigation system.
 Surgery measurement.
 3D printing.
Panels and their use
Create a mesh
A typical straightforward Geodesic Slicer workflow for consists of the following steps:
 Load a volume.nii (by Drag & Drop or the Add Data dialogue).
 Enter in the Geodesic Slicer module using either the toolbar or the Modules menu button.

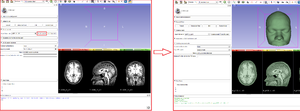

 Press the button "Create a quick mesh" or "Create a mesh" (with filling holes smoothing, better for the next part but longer).
 Wait a moment.
 Go to Parameters to find the shortest path or Make 1020 EEG system electrode section.
Parameters to find the shortest path

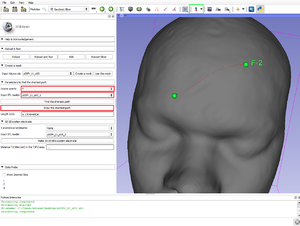

 Source points: The list of fiducial points on the curve, since the "Createandplace Fiducial" button (in green in the figure above).
 Input STL model: The model you use (after "use this mesh", the T1.stl created).
 Find the shortest path: Calculate in centimeter the geodesic (shortest) path via the Dijkstra's algorithm.
 Draw the shortest path: Draw the Dijkstra's algorithm shortest path.
 Length (cm): The length of the current curve is shown in centimeter.
1020 system electrode
 Run the Dijkstra's algorithm to make the 1020 system electrode.

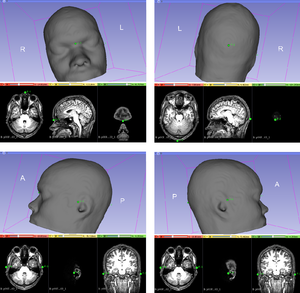

 4 anatomical landmarks: (Sources Points) The list of fiducial points on the curve, since the "Createandplace Fiducial" button (in green in the figure above). Four anatomical landmarks are used for the essential positioning of the electrodes (in this order!):
 1/ The nasion
 2/ The inion
 3/ The pre auricular to the left ear
 4/ The pre auricular to the right ear
 Input STL model: The model you use (after "use this mesh", the T1.stl created).
 Press the button "Make 1020 EEG system electrode" to draw the 1020 EEG system via the Dijkstra's algorithm.
 The traditional T3P3 site according to the International 10–20 system of electroencephalogram was identified.
 Project the stimulation site on the 1020 system electrode distances and characterize it.
 Stimulation Site placed: Place on the T1weighted anatomical image the stimulation point that you want since the "Createandplace Fiducial" button. Once this point given, click on 'Yes'.
 Press the button "Project the stimulation site" to project the stimulation point on the scalp and find the 3 nearest electrodes around it.
 Nearest electrode 1: The distance in centimeter between the first nearest electrode and the projected stimulation site.
 Nearest electrode 2: The distance in centimeter between the second nearest electrode and the projected stimulation site.
 Nearest electrode 3: The distance in centimeter between the third nearest electrode and the projected stimulation site.
rTMS resting motor threshold Correction factor
Calculate correction factors to adjust the rTMS dose for the treatment (according to the depth of the stimulation site).

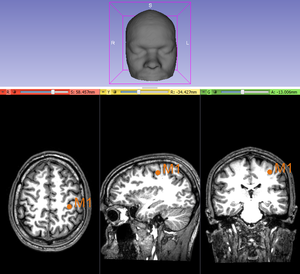

 M1 Point Placed: Place on the T1weighted anatomical image a point targeting the human motor cortex since the "Createandplace Fiducial" button. Once this point given, click on 'Yes'. Help via the Yousry's method.
 Set the stimulation intensity of the resting motor threshold.
 Press the button "Correct the motor threshold" to correct the unadjusted motor threshold (rMT) in % stimulator output.
 Two adjusted motor threshold (AdjMT%) in % stimulator output are given where SCDx is the scalptocortex distance between the scalp and and the Stimulation Site, SCDm is the scalptocortex distance between the scalp and M1.
 1/ The first according to Stokes et al. Clin Neurophysiol 2007 ^{[4]} , where [AdjMT% = 2,7*(SCDx  SCDm) + rMT]
 2/ The second according to Hoffman et al. Biol Psychiatry 2013 ^{[5]} , where [AdjMT% = 0.90*rMT*e0.036*(SCDxSCDm)]
