Module Description

The AstroVolume can read/write FITS file (astronomical data format) and handle the color function and display of Astro Volumes.


Panels and their use


Handling the loading and writing of FITS files




MRML nodes that store the data-cube and the FITS keywords in the 3DSlicer object-tree (Data module)




The control of the display coordinates




The display of Beam information in the XY view

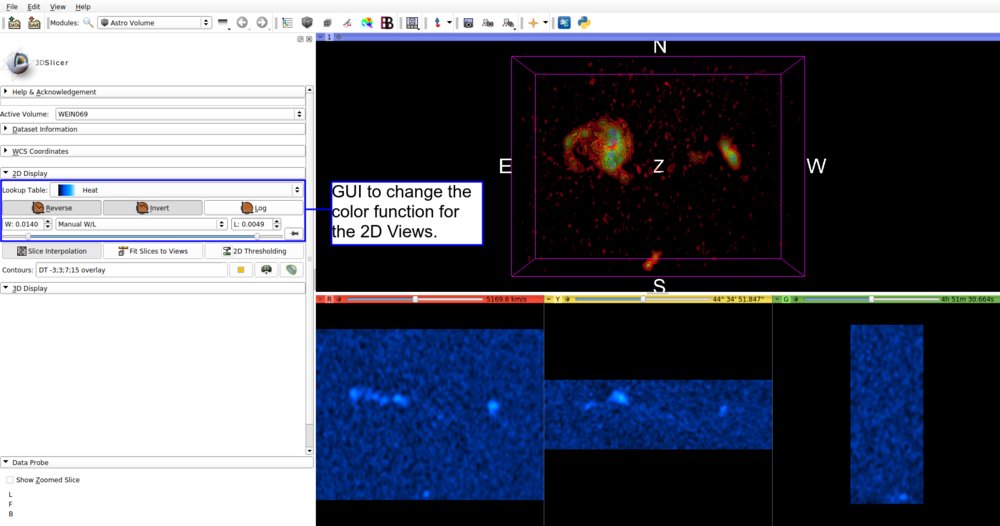

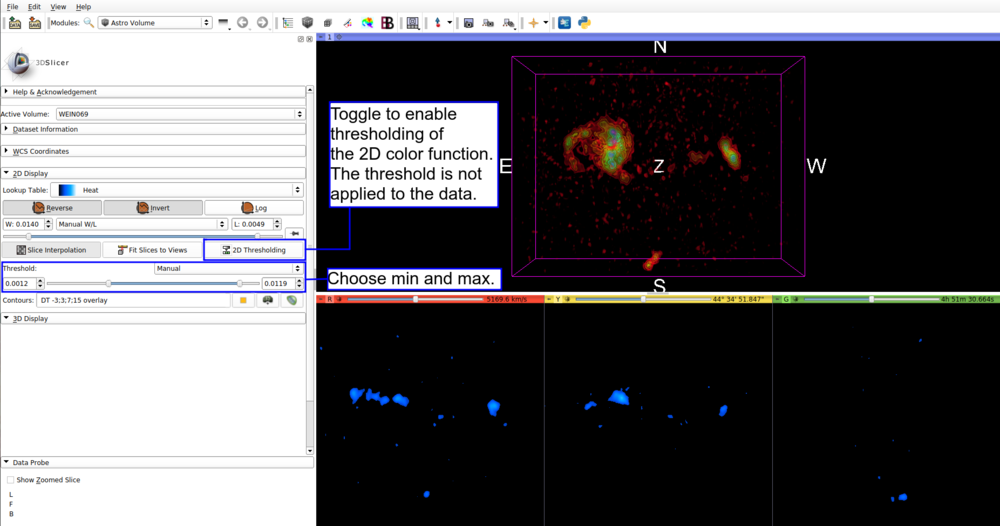

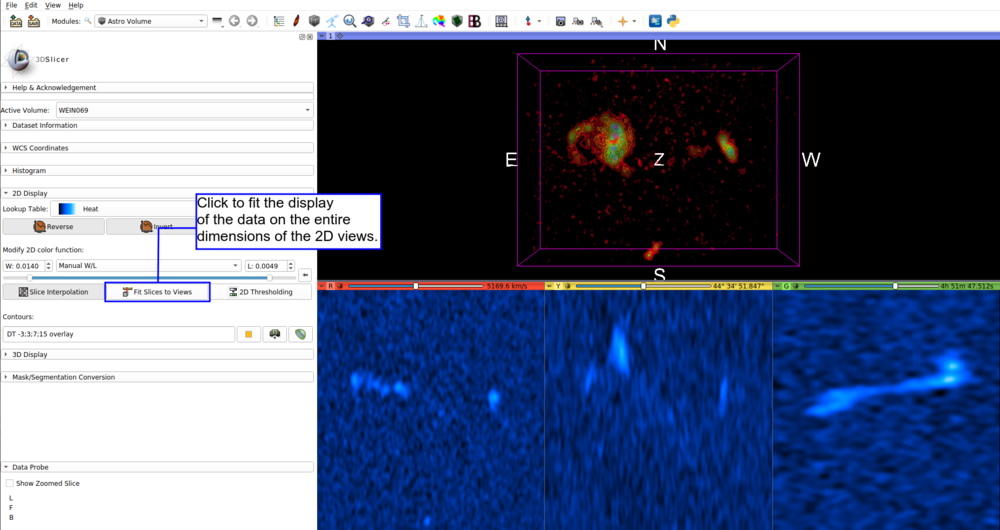

The control of the 2D color transfer function


Astro2DColorFunction1.png Astro2DColorFunction2.png Astro2DColorFunction3.png Astro2DColorFunction4.png


The display of the Astronomical World Coordinate (WCS) and Data Probing for 2D views




The display of Beam information in the XY view




The control of the 3D color transfer function

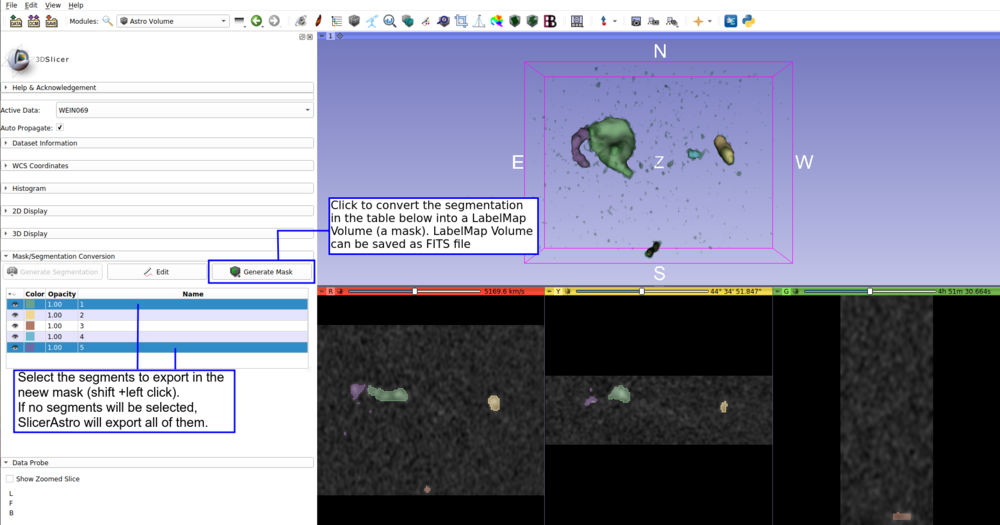

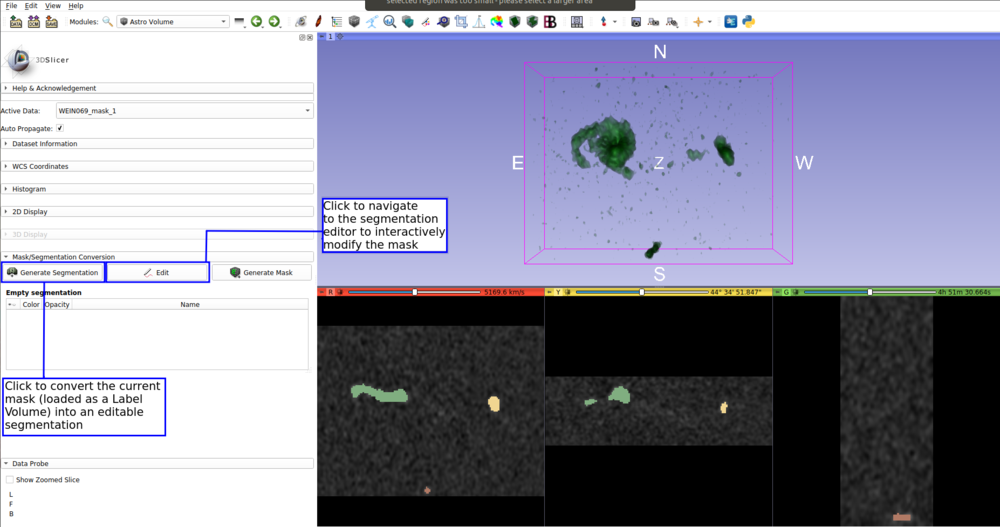

Tools to convert mask from FITS files (e.g., generated by SoFiA) into segmentations objects and viceversa


AstroMask2.png AstroMask6.png


Astro segmentation editor effect


AstroCloudLasso Effect

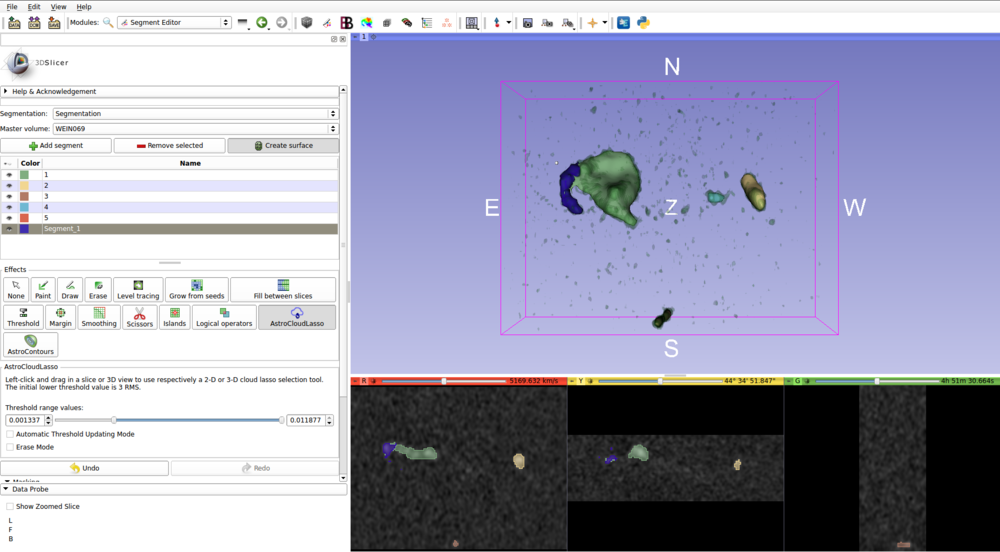

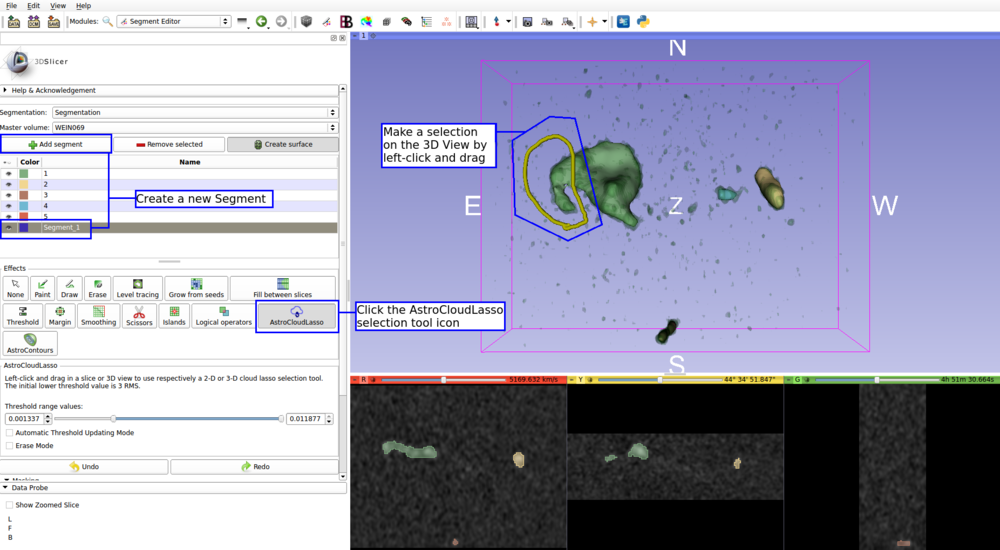

The AstroCloudLasso segmentation editor effect is a tool to interactively perform a 3D selection. This 3D selection (the segmentation) can be used either for:

1. changing an imported mask generated by automated algorithms (e.g., source finders);
2. providing an input mask to a variety of tools in SlicerAstro (e.g., MomentMaps module and Modeling module).

AstroMask3.png AstroMask4.png
