Introduction and Acknowledgements

Extension: ShapeQuantifier
Acknowledgments: This work was supported by the National Institues of Dental and Craniofacial Research and Biomedical Imaging and Bioengineering of the National Institutes of Health under Award Number R01DE024450
Author: Jean-Baptiste Vimort, University of Michigan
Contributors: Lucia Cevidanes (University of Michigan), Beatriz Paniagua (University of North Carolina), Juan-Carlos Prieto (University of North Carolina)
Contact: Jean-Baptiste Vimort, <email></email>

Module Description

The goal of this module is to simplify the user interface of slicer and more particularly for people who want to quantify differences between two models or make measurement on one model.
The Slicer's modules useful for quantification are all quickly accessible from ShapeQuantifier, they are organized in three different tabs: Preprocessing, Quantification and Analysis.

Use Cases

Error creating thumbnail: File missing
Logo for ShapeQuantifier
Interface of ShapeQuantifier

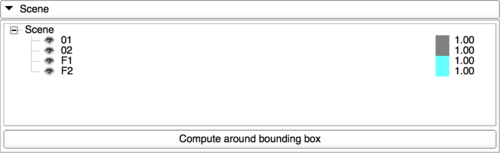

LongitudinalQuantification SceneTab.png This tab offer the possibility to modify how the models and the landmarks lists are displayed in the 3D view of Slicer.

The user has the possibility ti hide/show them, modify their color and their opacity.

Input Data

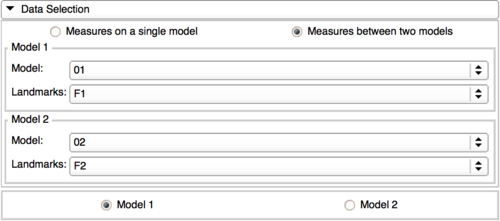

LongitudinalQuantification InputTab.png In this tab, the user will have to choose if he wants to make measurements between two models or on one single model.

If the user choose to work with two models, a group box will appear where he will be able to switch between the two models.

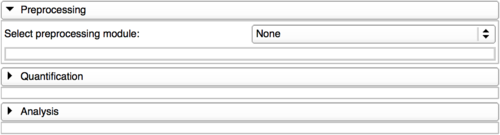

LongitudinalQuantification ComputationTab.png Those three tabs will allow the user to switch between the different modules.

The preprocessing tab contains EasyClip and SurfaceRegistration.
The quantification tab contains AnglePlanes, ModelToModelDistance and Q3DC.
The analysis tab contains MeshStatistics, PickAndPaint and ShapePopulationViewer.
