Introduction and Acknowledgements

Extension: T1_Mapping
Acknowledgments: This work is part of the National Alliance for Medical Image Computing (NA-MIC), funded by the National Institutes of Health through the NIH Roadmap for Medical Research, and by National Cancer Institute as part of the Quantitative Imaging Network initiative (U01CA154601) and QIICR (U24CA180918).
Implementation of the T1 Mapping was contributed by Xiao Da from MGH.
Author: Xiao Da (MGH), Artem Mamonov (MGH), Andriy Fedorov (BWH) and Jayashree Kalpathy-Cramer (MGH)
Contact: Xiao Da, <email>XDA@mgh.harvard.edu</email>

National Alliance for Medical Image Computing (NA-MIC)
Quantitative Image Informatics for Cancer Research
Martinos Center for Biomedical Imaging


Module Description

T1 mapping estimates effective tissue parameter maps (T1) from multi-spectral FLASH MRI scans with different flip angles.

The method and equations for Variable Flip Angle T1 Mapping are available here: http://www.ncbi.nlm.nih.gov/pmc/articles/PMC3620726/pdf/nihms-423474.pdf

Use Cases

  • Take multi-spectral FLASH images with an arbitrary number of flip angles as input, and estimate the T1 values of the data for each voxel.
  • Read repetition time(TR), echo time(TE) and flip angles from the Dicom header directly.
  • Prostate, brain, head & neck, cervix, breast and etc.
Sample Results of T1 Mapping

Tutorials

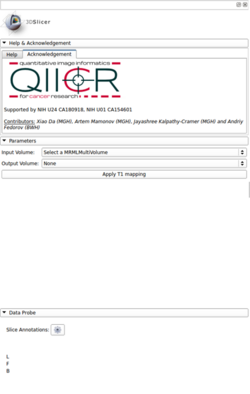

Panels and their use

T1 Mapping
  • Parameters:
    • Input Volume: Multi-spectral FLASH MRI on multi-volume dicom format
    • Output Volume: T1 mapping result calculated at each voxel

Similar Modules


References

Information for Developers


Source code: https://github.com/stevedaxiao/T1_Mapping
