=Overview=

Slicer3's main desktop interface provides top-level access to most commonly-used features, and organizes them into logical groupings. These groups of features are presented in a number of interface panels on the GUI, as is illustrated in the basic layout below. The interface is designed to be easy to learn and remember, to ease navigation of Slicer's large (and growing) functionality, and to easily collapse and hide when you don't need to see it. Figures A through H in the gallery at the top of this page provide richer detail and will be described in sections below.
+

 +
Slicer3's main desktop interface provides top-level access to most commonly-used features, and organizes them into logical groupings. These groups of features are presented in a number of interface panels on the GUI, as is illustrated in the basic layout below. The interface is designed to be easy to learn and remember, to ease navigation of Slicer's large (and growing) functionality, and to easily collapse and hide when you don't need to see it. Figures A through I in the "Individual frames" gallery a little further down on this page provide richer detail and will be described in the following sections.


[[image:SlicerGUIIntro.png ]]

[[image:SlicerGUIIntro.png ]]
Line 31: Line 33:

Image:VCGUIMap.png | '''Figure D.''' Schematic of the [[Modules:MainApplicationGUI-Documentation-3.2#3D_Viewer_Control_Panel | Controller for the 3D Viewer ]]

Image:VCGUIMap.png | '''Figure D.''' Schematic of the [[Modules:MainApplicationGUI-Documentation-3.2#3D_Viewer_Control_Panel | Controller for the 3D Viewer ]]

image:SliceGUIMap.png | '''Figure E.''' Schematic of a [[Modules:MainApplicationGUI-Documentation-3.2#Slice_Viewers_.26_Controllers | Slice Viewer and Slice Controller]]

image:SliceGUIMap.png | '''Figure E.''' Schematic of a [[Modules:MainApplicationGUI-Documentation-3.2#Slice_Viewers_.26_Controllers | Slice Viewer and Slice Controller]]
Image:SliceGUIMoreMap.png | '''Figure F.''' Schematic of [[Modules:MainApplicationGUI-Documentation-3.2#Slice_Viewers_.26_Controllers | Slice Viewer additional options ]]
+
Image:ModuleGUIPanel.png | '''Figure F.''' Schematic of an [[Modules:MainApplicationGUI-Documentation-3.4#Module_GUI_Panel | expanding/collapsing module GUI panel ]]
Image:AppSettingsGUIMap.png | '''Figure G.''' Schematics of the [[Modules:MainApplicationGUI-Documentation-3.2#View-.3EApplication_Settings_Interface: | Application Settings Interface ]]
+
Image:SliceGUIMoreMap.png | '''Figure G.''' Schematic of [[Modules:MainApplicationGUI-Documentation-3.2#Slice_Viewers_.26_Controllers | Slice Viewer additional options ]]
Image:RemoteIOGUIMap.png | '''Figure H.''' Schematic of the [[Modules:MainApplicationGUI-Documentation-3.2#View-.3ECache_.26_RemoteIO_Manager: | Remote Data Handling Interface ]]
+
Image:AppSettingsGUIMap.png | '''Figure H.''' Schematics of the [[Modules:MainApplicationGUI-Documentation-3.2#View-.3EApplication_Settings_Interface: | Application Settings Interface ]]
 +
Image:RemoteIOGUIMap.png | '''Figure I.''' Schematic of the [[Modules:MainApplicationGUI-Documentation-3.2#View-.3ECache_.26_RemoteIO_Manager: | Remote Data Handling Interface ]]

</gallery>

</gallery>



= Application Menubar =

= Application Menubar =
Line 41: Line 43:


== File menu ==

== File menu ==
 +
 +
Several loading options are available from the file menu. Below is a '''general overview''' of these options. For more details and suggestions for common use cases, see [[ Modules:Loading-Data-3.4 | Data loading details for Slicer3.4]]. For information about accessing the functionality described below and loading other types of data (like transforms, fiducial lists, color tables, DTI fiber bundles ''etc''.) through the Data Module, see [[Modules:DataModule-3.4 | Slicer's Data Module documentation]].
 +
 +
<br>
 +
<br>
 +

'''File->Load Scene:'''

'''File->Load Scene:'''

Line 46: Line 54:


[[image:FileBrowser.png]]

[[image:FileBrowser.png]]
 +
<br>
 +
<br>


'''File->Import Scene:'''

'''File->Import Scene:'''


This command raises the same file browser shown above. Navigate to and select a scene file to be added to the existing Slicer scene. '''(The existing scene is not cleared)'''.

This command raises the same file browser shown above. Navigate to and select a scene file to be added to the existing Slicer scene. '''(The existing scene is not cleared)'''.
 +
<br>
 +
<br>


'''File->Add Data:'''

'''File->Add Data:'''

This command raises an "Add Data" widget (shown below) that allows you to select individual datasets to add to the existing scene. It exposes the following functionality:
+
This command raises an "Add Data" widget (shown below) that allows you to select individual datasets to add to the existing scene. This load option is most useful when you want to load many different data types at once (volumes, models, ''etc.'') which may not yet be described by a scene file. It exposes the following functionality:


* The "Add Directory" button adds all files within the selected directory to the file list.

* The "Add Directory" button adds all files within the selected directory to the file list.
Line 63: Line 75:

[[image:AppAddData.png]]

[[image:AppAddData.png]]

 +
<br>
 +
<br>


'''File->Add Volume:'''

'''File->Add Volume:'''

This command raises an "Add Volume" widget (shown below) that allows you to select a volumetric dataset to add to the existing scene. The "Volume Options" panel can be used to clarify how a selected dataset should be loaded and displayed.
+
This command raises an "Add Volume" widget (shown below) that allows you to select a volumetric dataset to add to the existing scene. The "Volume Options" panel can be used to clarify how a selected dataset should be loaded and displayed. This load option is particularly useful for loading DICOM data, for which its DICOM information parsing panel can be helpful.


[[image:AppAddVolume.png]]

[[image:AppAddVolume.png]]

+
<br>

+
<br>


'''File->Save:'''

'''File->Save:'''
Line 76: Line 90:

This command displays the "Save Data" widget, which offers many options for saving a scene and/or individual datasets. The widget is shown below:

This command displays the "Save Data" widget, which offers many options for saving a scene and/or individual datasets. The widget is shown below:

 +
[[image:AppSaveData.png]]


'''Specifying a scene file to save:''' The ''Scene Description'' entry is always listed in the top row of the table. If a scene has already been loaded from a MRML file, then its filename is presented as the default choice. To save the scene into a '''new''' MRML file, either provide an alternate file name, or provide a new Data Directory.

'''Specifying a scene file to save:''' The ''Scene Description'' entry is always listed in the top row of the table. If a scene has already been loaded from a MRML file, then its filename is presented as the default choice. To save the scene into a '''new''' MRML file, either provide an alternate file name, or provide a new Data Directory.

'''Indicating new and unsaved datasets:''' When the panel is first displayed, all datasets which have been newly created or modified since the scene was saved are checked by default in the ''Save'' column. Any datasets in the scene can be checked/unchecked for saving/not saving using the checkboxes provided in this column. The icon buttons in the top left corner of the window provide shortcuts to modify the default selection:
+
'''Indicating new and unsaved datasets:''' When the panel is first displayed, all datasets which have been newly created or modified since the scene was saved are checked by default in the ''Save'' column. Any datasets in the scene can be checked/unchecked for saving/not saving using the checkboxes provided in this column. The icon buttons in the top left corner (from left to right) of the window provide shortcuts to modify the default selection:


* '''Select All''',

* '''Select None''',

* '''Select Scene and Modified Data''', or

* '''Select Modified Data'''only.


These icons are shown and annotated below, under the SaveData illustration. Any individual checkbox can also be modified.
+
* '''Select Scene and Modified Data''',
 +
* '''Select Modified Data'''only,
 +
* '''Select All''', and
 +
* '''Select None'''.

[[image:AppSaveData.png]]
+
These icons are shown and annotated below, under the SaveData illustration. Any individual checkbox can also be used to modify the selection state.


[[image:AppSaveDataIcons.png]]

[[image:AppSaveDataIcons.png]]
Line 127: Line 140:


'''Saving data:''' Finally, selecting the ''Save Selected'' button will launch the scene/data saving process, and ''Cancel'' will abort it.

'''Saving data:''' Finally, selecting the ''Save Selected'' button will launch the scene/data saving process, and ''Cancel'' will abort it.
 +
<br>
 +
<br>


'''File->Close Scene:'''

'''File->Close Scene:'''


This command closes the current scene and resets the application state.

This command closes the current scene and resets the application state.

+
<br>
 +
<br>


'''File->Exit'''

'''File->Exit'''
Line 161: Line 177:

==View menu ==

==View menu ==

'''View->Module Search:'''
+
'''View->Manage Extensions:'''



 +
This [[Modules::ExtensionsManagementWizard-Documentation-3.4 |Extensions Management Wizard]] provides status and information about available extensions for 3.4


'''View->Cache & RemoteIO Manager:'''

'''View->Cache & RemoteIO Manager:'''
Line 175: Line 191:

Below, all of the Cache & Remote Data I/O Manager icons are listed and described:

Below, all of the Cache & Remote Data I/O Manager icons are listed and described:

[[image:RemoteIOIcons.png]]
+
[[image:RemoteIOIcons.png |center ]]


'''View->Application Settings Interface:'''

'''View->Application Settings Interface:'''
Line 210: Line 226:

This command raises the Tcl interactor for scripted interaction with Slicer data:

This command raises the Tcl interactor for scripted interaction with Slicer data:

[[image:TclInteractor.png]]
+
[[image:TclInteractor.png |center ]]


==Help menu ==

==Help menu ==
Line 216: Line 232:

'''Help->Browse Tutorials:'''

'''Help->Browse Tutorials:'''

This functionality is being developed.
+
Raises Slicer's training page in mozilla firefox web browser (Note: you will need to have specified the location of Mozilla Firefox executable in Slicer's Application Settings Interface: '''Application Settings->Slicer Settings''').


'''Help->About Slicer3:'''

'''Help->About Slicer3:'''


Provides a description of the Slicer3 effort and its support.

Provides a description of the Slicer3 effort and its support.
 +
 +
'''Help->Keyboard Shortcuts:'''
 +
 +
Raises a window that lists commonly-used keyboard shortcuts.


==Feedback menu ==

==Feedback menu ==
 +
'''Note: for all commands in the Feedback Menu, you will need to have specified the location of your Mozilla Firefox executable in Slicer's Application Settings Interface: Application Settings->Slicer Settings) so Slicer knows how to launch the web browser.


'''Feedback->Report a Bug:'''

'''Feedback->Report a Bug:'''
Line 256: Line 277:

Each module GUI contains its functionality inside collapsing and expanding frames, also shown below, to minimize the need to scroll among individual blocks of functionality within a module. The frames can be collapsed or expanded by clicking in the title frame. The Slices Control and 3D Viewer Control GUI panels also can be collapsed to make more space for a module GUI.

Each module GUI contains its functionality inside collapsing and expanding frames, also shown below, to minimize the need to scroll among individual blocks of functionality within a module. The frames can be collapsed or expanded by clicking in the title frame. The Slices Control and 3D Viewer Control GUI panels also can be collapsed to make more space for a module GUI.

[[image:ModuleGUIPanel.png]]
+
Brief '''Help Text''' and '''Module Attribution and Acknowledgements''' can be found in the topmost panel in any module.
 +

 +
[[image:ModuleGUIPanel.png |center ]]


= Slice Viewer Control Panel =

= Slice Viewer Control Panel =

The Slice Viewer Control Panel allows configuration of all Slice GUIs at once. The functionality represented by icons in Slicer Version 3.2 is described below:

The Slice Viewer Control Panel allows configuration of all Slice GUIs at once. The functionality represented by icons in Slicer Version 3.2 is described below:

[[image:SCGUIMap.png]]
+
[[image:SCGUIMap.png |center ]]


= 3D Viewer Control Panel =

= 3D Viewer Control Panel =

The 3D Viewer Control Panel provides many options for configuring the 3D viewer. The left-most panel allows the view to be oriented along any of the principle axes. Axes highlight on mouse-over. The functionality included in the panel represented by icons and checkboxes is described in the diagram below. Finally, the right most viewer duals as a birds-eye-view display of the entire scene, or a slice magnifier window when the mouse moves over any of the slice windows.
+
The 3D Viewer Control Panel provides many options for configuring the 3D viewer. The left-most panel allows the view to be oriented along any of the six principle axes ('''S'''uperior, '''I'''nferor, '''A'''nterior, '''P'''osterior, '''L'''eft or '''R'''ight). Axis symbols highlight on mouse-over. The functionality included in the panel represented by icons and checkboxes is described in the diagram below. Finally, the rightmost viewer duals as a birds-eye-view display of the entire scene, or a slice magnifier window when the mouse moves over any of the slice windows.

[[image:VCGUIMap.png]]
+
[[image:VCGUIMap.png |center ]]


== Stereoscopic and Kinetic Depth ==

== Stereoscopic and Kinetic Depth ==
The 3D Viewer provides a number of options for assessing depth and layout in complicated scenes. The stereo viewing pull-down menu, labeled "M" in the diagram above, provides several stereo viewing options, and the view rock (labeled "O") and view spin (labeled "N") animate the scene to help clarify feature shape, depth and layout.
+
The 3D Viewer provides a number of options for assessing depth and layout in complicated scenes. The stereo viewing pull-down menu, labeled "M" in the schmatic above, provides several stereo viewing options, and the view rock (labeled "O") and view spin (labeled "N") animate the scene to help clarify feature shape, depth and layout.
 +

 +
== Screen Captures ("Screenshots")==
 +
Screen captures of the 3D Viewer can be saved by selecting the icon labeled "D" in the schematic above. This raises the Screen Capture interface (shown below) that allows you to specify a save destination, a filename, version number, image format and exposes the option for overwriting existing files.
 +

 +
[[image:VCGUI-Screenshots.png |center ]]


== Scene Snapshots==

== Scene Snapshots==
Line 279: Line 307:


To create or restore a scene snapshot:

To create or restore a scene snapshot:
* Click on the camera icon (labeled "H" in the diagram below) to record a scenesnapshot.
+
* Click on the camera icon (labeled "H" in the schematic above) to record a scenesnapshot.
* Use the pull down menu (labeled "L" in the diagram below) to select from a list of existing snapshots.
+
* Use the pull down menu (labeled "L" in the schematic above) to select from a list of existing snapshots.

* Click on the arrow icon to restore the snapshot.

* Click on the arrow icon to restore the snapshot.

* You can also click on the trashcan icon to delete the snapshot.

* You can also click on the trashcan icon to delete the snapshot.

[[image:SceneSnapshots.png]]
+
[[image:SceneSnapshots.png |center ]]


= Slicer Viewers =

= Slicer Viewers =
 +
In this section, Slicer's Slice Viewers and Main 3D Viewer are described, and options for configuring their layout and display of information.
 +
 +
== Slice Viewers (and their Controllers) ==
 +
 +
Slicer's three main Slice Viewers are color-coded Red, Yellow and Green. By default, these correspond to '''Axial''', '''Saggital''' and '''Coronal''' slice orientations respectively, but this can be modified by a user. In Slicer's '''Compare View''' layout (described a little later), the Slice Viewers are color-coded Orange.
 +
 +
All Slice viewers have their own Slice Controller, which can be expanded or collapsed by clicking in the colored bar at their top, for convenience. The Red Viewer is shown below, expanded and collapsed as described. Note that corner annotations are displayed when the mouse hovers over any viewer.
 +
 +
[[image:SliceControllerGUICollapseAndExpand.png |center ]]
 +
 +
The Slice GUI Controller provides ways to manipulate its individual Slice View, and provides ways to manipulate all "linked" Slice Viewers. Below is a schematic of the individual controls provided with each Slice Viewer; these, and "linked" control are described (briefly) in subsequent sections.

== Slice Viewers ==
+
[[image:SliceGUIMap.png |center ]]


===Slice orientation and Oblique reformats===

===Slice orientation and Oblique reformats===
On each viewer, there is a menu button in the upper left of the control pane that usually says "axial", "coronal", or "sagittal".  There is a forth option that one can select from the button which is "reformat". Slice viewers can be used to specify oblique reformats using the 'Reformat' orientation (instead of axial, coronal, sagittal) and CTRL-Right-Button-Move (subject to change).
+
On each Slice Viewer, an '''Orientation''' menu button in the upper left of the control panel provides the option to display an  "Axial", "Coronal", "Sagittal", or "Reformat" slice orientation in the Viewer.
 +

 +
Slice viewers can be used to specify oblique reformats in two ways:
 +
* first by using the "Reformat" orientation and CTRL-Right-Button-Move (subject to change and something of an "art" to control).
 +

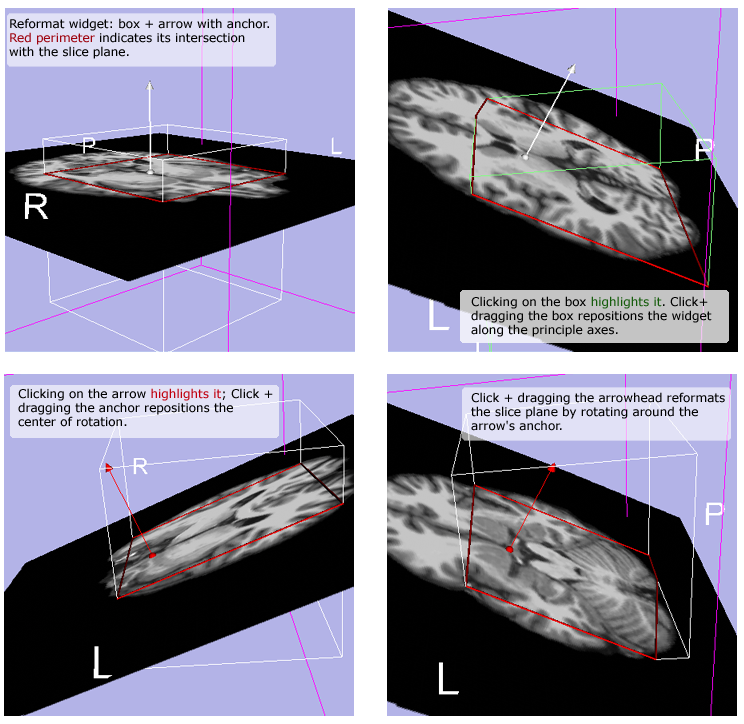

* and second by selecting the '''Show Reformat Widget''' option ([[image:SliceControllerShowReformatWidget.png]]) from the Slice Controller's '''More Options''' menu ([[image:SliceControllerMoreOptions.png]]), and interacting with the widget. The widget can be toggled off using the menu's '''Hide Reformat Widget''' option ([[image:SliceControllerHideReformatWidget.png]]). Using this widget's interactive box & arrow to reformat the slice plane (illustrated below) causes the Orientation selector to display the "Reformat" orientation, and the Slice Viewer to display the reformatted plane.

[[image:SliceGUIMap.png]]
+
[[image:AppDoc-ReformatWidget.png |center ]]


===Linking Control of Slice Viewers===

===Linking Control of Slice Viewers===
 +
 +
Control of slice viewers can be linked to save time setting them up and manipulating their display individually. The icons shown below, found in the leftmost of each Slice Controller's toolbar, toggle linking and unlinking of the viewers.


[[image:AppDoc-SliceLink.png]]

[[image:AppDoc-SliceLink.png]]
 +
 +
When Slice Viewers are linked, the "linked" icon ([[image:AppDoc-SlicesLinked.png]])is displayed. Clicking the icon-button will unlink the Viewers, and will display the "Unlinked" icon ([[image:AppDoc-SlicesUnlinked.png]]). When the Slice Viewers are linked, many but not all of the controllers' options apply to all viewers. The following controls are linked:
 +
 +
* Orientation
 +
* FG, BG, Label selectors
 +
* Visibility
 +
* Fit To Window
 +
* Adjust Label Map Opacity
 +
* Show/Hide Label Volume Outlines
 +
* Show/Hide Reformat Widget


===Slice Plane Visibility in 3D Viewer===

===Slice Plane Visibility in 3D Viewer===

[[image:AppDoc-SliceVisibility.png]]
+

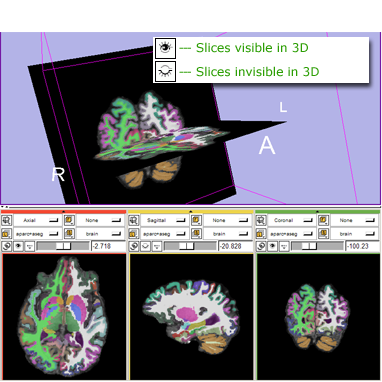

The Slices shown in each of the Slice Viewers may be displayed in the Main 3D Viewer as well. Their visibility in the 3D Viewer is controlled with the '''Visibility''' icon button in the Slice Controllers, as shown in the figure below. When Slices are visible in the 3D Viewer, the "visible" icon ([[image:AppDoc-SlicesVisible.png]])is displayed. Clicking the icon-button will hide the Slices in the 3D Viewer, and will display the "Invisible" icon ([[image:AppDoc-SlicesInvisible.png]]).
 +

 +
[[image:AppDoc-SliceVisibility.png |center ]]


===Other Slice GUI options===

===Other Slice GUI options===
 +
 +
The Slice controllers offer other options as well, available under the '''More Options''' menubutton ([[image:SliceControllerMoreOptions.png]]). Options here include some of those available in the '''Slices Controller GUI''' and some additional. These options, each shown in the figures '''A - H''' below, include:
 +
 +
* A. Fit a slice to the size of a Viewer's window
 +
* B. Adjust the opacity of a label map
 +
* C. Show/Hide outlines around labels in a label map
 +
* D. Show/Hide the Slice Reformat Widget
 +
* E. Select options for compositing slice layers
 +
* F. Choose manual or automatic slice spacing modes
 +
* G. Create a lightbox view within a Slice Viewer
 +
* H. Adjust the display of Foreground, Background or Label layers.


[[image:SliceGUIMoreMap.png]]

[[image:SliceGUIMoreMap.png]]
 +
 +
===Configuring Slice Viewers when the Controllers are collapsed ===
 +
 +
In Slicer's '''Slices Module''', all Slice Viewers' Slice Controllers are arrayed in a vertical stack; When screen real estate must be maximized, the individual Slice Viewers' Controllers can be collapsed and the GUI panel's controllers can be used to manipulate the Viewers instead. The Slices Module's GUI panel is shown below.
 +
 +
[[image:SlicesGUIPanel.png |center ]]
 +
 +
<br>
 +
<br>


== Main 3D Viewer ==

== Main 3D Viewer ==
 +
 +
=== Default elements and their visibility===
 +
 +
Slicer's Main 3D Viewer displays a three-dimensional view of the scene. By default, the scene includes some elements for spatial reference including a 3D wireframe cube centered around the origin (0,0,0) and labels along each of the principle axes ('''R'''ight, '''L'''eft, '''S'''uperior, '''I'''nferior, '''A'''nterior, and '''P'''osterior). Slicer's default blue background color, as well as the visibility of the spatial references in the view, can be modified in the View Control GUI panel's visibility menu, as shown below:
 +
 +
[[image:AppDoc-VCGuiVisibility.png]]
 +
 +
=== Interacting ===
 +
 +
You can adjust the view in the Main 3D Viewer using the mouse or keyboard (for information on the latter, please see the Keyboard Shortcuts section):
 +
 +
* '''Zoom in:''' Right-mouse-button click-and-drag toward you. (Imagine pulling the scene closer)
 +
* '''Zoom out:''' Right-mouse-button click-and-drag away from you. (Imagine pushing the scene away)
 +
* '''Pan''' (shift the look-at point): Middle-mouse-button click-and-drag left, right, up or down.
 +
* '''Rotate Around''' a look-at point: Left-mouse-button click-and-drag.
 +
 +
If you need more precise control, or if the view gets into some hard-to-manage configuration, the View Control GUI panel can be used to reset the look-from and look-at point in a manageable way:
 +
 +

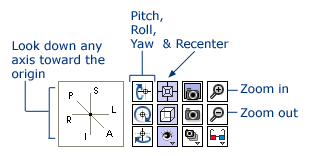

[[image:AppDoc-VCGuiSetView.png]]


=== Window and layout configurations ===

=== Window and layout configurations ===
 +
 +
Slicer can be configured to show or hide the Module GUI panel, and to display it on the left or right side of the Viewers. These options are accessed as follows:
 +
 +
* Show/Hide Module GUI Panel: F5-key or Toolbar's Layout Menubutton ([[image:AppDoc-layoutIcon.png]])->Toggle GUI panel visibility
 +
* Move Module GUI Panel to the Left/Right: Toolbar's Layout Menubutton ([[image:AppDoc-layoutIcon.png]])->Toggle GUI panel L/R
 +
* Show/Hide Bottom Panel: F6-key (this option is only really useful in Slicer's Conventional View)


[[image:AppGUIBasicConfigure.png]]

[[image:AppGUIBasicConfigure.png]]
 +
 +
In addition, there are a number of ways to arrange the Slice and 3D Viewers. We hope to offer a more extensible suite of configuration options in the future. At present, these options are available from Slicer's Application Toolbar's Layout Menubutton ([[image:AppDoc-layoutIcon.png]]), and are illustrated below:
 +
 +
*


[[image:AppLayouts.png]]

[[image:AppLayouts.png]]

 +
= Error Log =

= Application Hot-keys (keyboard accelerators) =
+
Finally, the application has an accessible error log in the event of unexpected behavior or error messages -- this readout is useful for reporting bugs or usability problems back to the Slicer Development Team. The error log can be raised in the following ways:

{| class="wikitable"
+
* Typing '''Ctrl+Alt+E'''
|- border="1"
+
* Menubar's '''Window->Error Log'''
! align="left" |Key(s)
+
* Clicking the '''Error Log icon''', which is displayed only if any error reports are present, and as shown below.
! align="left" |Action bound to key(s)

|-

| style="width:200px" | <font color="blue"> '''Ctrl+O'''

| align="left" |Load a new scene (clears existing scene)

|-

| style="width:200px" | <font color="blue"> '''Ctrl+A'''

| align="left" |Import a scene (does not clear existing scene)

|-

| style="width:200px" | <font color="blue"> '''Ctrl+W'''

| align="left" | Close a scene

|-

| style="width:200px" | <font color="blue"> '''Ctrl+H '''

| align="left" | Set the current module to be the "home" module -- the module that's exposed when Slicer starts up.

|-

| style="width:200px" | <font color="blue"> '''Ctrl+Z '''

| align="left" | Undo the last undoable action

|-

| style="width:200px" | <font color="blue"> '''Ctrl+Y '''

| align="left" | Redo the last redoable action

|-

| style="width:200px" | <font color="blue"> '''Space-key '''

| align="left" | Toggles the display of Slicer's Edit Box.

|-

| style="width:200px" | <font color="blue"> '''Ctrl+P '''

| align="left" | Display the Python console

|-

| style="width:200px" | <font color="blue"> '''Ctrl+L '''

| align="left" | Create a new fiducial list.

|}


== Slice Viewer Hot-keys (keyboard accelerators) ==
+
[[image:RaiseErrorLog.png]]

{| class="wikitable"
+
[[image:ErrorLog.png]]
|- border="1"

! align="left" |Key(s)

! align="left" |Action bound to key(s)

|-

| style="width:200px" | <font color="blue"> '''` (back-tick key)'''

| align="left" |Navigate to next fiducial in the active Slice Viewer, or in all viewers if they are linked

|-

| style="width:200px" | <font color="blue"> '''Ctrl+` (back-tick key)'''

| align="left" |Navigate to next fiducial in all Slice Viewers, independent of their linked state

|-

| style="width:200px" | <font color="blue"> '''Shift+` (back-tick key)'''

| align="left" | Navigate to the previous fiducial in the active Slice Viewer, or in all viewers if they are linked

|-

| style="width:200px" | <font color="blue"> '''Ctrl+Shift+` (back-tick key)'''

| align="left" | Navigate to the previous fiducial in all Slice Viewers, independent of their linked state

|-

| style="width:200px" | <font color="blue"> '''p-key'''

| align="left" | Place a new fiducial in the active Slice Viewer(adds to the current fiducial list, or creates a list if there are none)

|-

| style="width:200px" | <font color="blue"> '''o-key'''

| align="left" | Turn on the Slice Plane reformat widget in the active Slice Viewer

|-

| style="width:200px" | <font color="blue"> '''v-key'''

| align="left" | Toggles the slice plane visibility in the main 3D Viewer

|-

| style="width:200px" | <font color="blue"> '''r-key'''

| align="left" | Fits the slice view to the volume extents in the active Slice Viewer, or in all viewers if they are linked (the first non-none volume will be used in order of Background, Foreground and Label layers)

|-

| style="width:200px" | <font color="blue"> '''b-key'''

| align="left" | Decrement slice in the active Slice Viewer (left or down) by one unit of background pixel spacing

|-

| style="width:200px" | <font color="blue"> '''f-key'''

| align="left" | Increment slice in the active Slice Viewer (right or up) by one unit of backgroun dpixel spacing

|-

| style="width:200px" | <font color="blue"> '''Backspace-key'''

| align="left" | When the mouse is hovering over a fiducial in the Slice Viewer (turning it yellow), delete that fiducial

|-

| style="width:200px" | <font color="blue"> '''Delete-key'''

| align="left" | When the mouse is hovering over a fiducial in the Slice Viewer (turning it yellow), delete that fiducial

|}


= Error Log =


[[image:RaiseErrorLog.png]]


[[image:ErrorLog.png]]
+
= Status Text and Progress Bar =
 +

 +
For some operations, loading, saving or processing may take awhile; Slicer may post status text at the bottom of the Application's window (shown below) that helps you to understand what it's working on. This readout isn't available as often as it should be; we hope to address this usability issue in future software releases. If you encounter any situation in which a status update would be especially useful but none exists, please report your discovery to Slicer's bug tracker as a usability issue.
 +

 +
[[image:AppDoc-StatusText.png  ]]
 +

 +
Progress is also displayed during processing operations. One progress readout commonly used by command-line modules is found in the lower right corner of the Slicer Window in the Progress Gauge, shown below:
 +

 +
[[image:AppDoc-ProgressBar.png |center ]]

= Message and Progress Bar=
+
Some Slicer modules also use a pop-up progress dialog, which assumes "focus" and prevents you from interacting with Slicer until the processing is finished; the dialog appears as below:

= Message and Progress Bar =
+
[[image:AppDoc-ProgressDialog.png |center ]]

Latest revision as of 19:06, 26 May 2009

Home < Modules:MainApplicationGUI-Documentation-3.4

Return to Slicer Documentation

Gallery of New Features

Overview

Slicer3's main desktop interface provides top-level access to most commonly-used features, and organizes them into logical groupings. These groups of features are presented in a number of interface panels on the GUI, as is illustrated in the basic layout below. The interface is designed to be easy to learn and remember, to ease navigation of Slicer's large (and growing) functionality, and to easily collapse and hide when you don't need to see it. Figures A through I in the "Individual frames" gallery a little further down on this page provide richer detail and will be described in the following sections.


As shown above, the logical groupings of Slicer's interface elements include:

  • The Application Menubar
  • The Application Toolbar
  • The Main GUI Panel, which consists of:
    • Slicer's Logo Panel
    • The Module GUI Panel
    • The Slice Viewer Controls
    • The 3D Viewer Controls
  • The 3D Viewer
  • Three Main Slice Viewers (Red, Yellow, and Green)and additional Slice Viewers
  • The Message Bar and Progress Gauge
  • And the Error Log Button

An overview of the functionality provided in each of these interface elements is provided below.

Individual Panels

Application Menubar

The Application menubar is at the very top of Slicer3's main window, as noted above and in Figure A. Its menus and functionality are briefly listed below.

File menu

Several loading options are available from the file menu. Below is a general overview of these options. For more details and suggestions for common use cases, see Data loading details for Slicer3.4. For information about accessing the functionality described below and loading other types of data (like transforms, fiducial lists, color tables, DTI fiber bundles etc.) through the Data Module, see Slicer's Data Module documentation.



File->Load Scene:

This command raises a file browser (shown below). Slicer's file browser has a 'favorites' icon that allows you to save often-visited directories on the browser's left panel. Other features, including icons that allow you to navigate your browsing history, pop up a level in the directory structure (or folder hierarchy) and create new folders. To load a scene, navigate to a file of the appropriate format (.mrml, .xcat (XCEDE catalog file), or .xml (Slicer2 scene file) and select it for loading into Slicer. The command first clears any existing scene in Slicer and resets the application state.


File->Import Scene:

This command raises the same file browser shown above. Navigate to and select a scene file to be added to the existing Slicer scene. (The existing scene is not cleared).

File->Add Data:

This command raises an "Add Data" widget (shown below) that allows you to select individual datasets to add to the existing scene. This load option is most useful when you want to load many different data types at once (volumes, models, etc.) which may not yet be described by a scene file. It exposes the following functionality:

  • The "Add Directory" button adds all files within the selected directory to the file list.
  • The "Add File(s)" button adds all selected files to the file list.
  • The array of buttons across the top allow you to select and deselect files in the file list, remove selected files from the list, or describe how files should be loaded.
  • The "Apply" button loads all datasets in the list, and
  • The "Cancel" button aborts the entire load.




File->Add Volume:

This command raises an "Add Volume" widget (shown below) that allows you to select a volumetric dataset to add to the existing scene. The "Volume Options" panel can be used to clarify how a selected dataset should be loaded and displayed. This load option is particularly useful for loading DICOM data, for which its DICOM information parsing panel can be helpful.


File->Save:

This command displays the "Save Data" widget, which offers many options for saving a scene and/or individual datasets. The widget is shown below:


Specifying a scene file to save: The Scene Description entry is always listed in the top row of the table. If a scene has already been loaded from a MRML file, then its filename is presented as the default choice. To save the scene into a new MRML file, either provide an alternate file name, or provide a new Data Directory.

Indicating new and unsaved datasets: When the panel is first displayed, all datasets which have been newly created or modified since the scene was saved are checked by default in the Save column. Any datasets in the scene can be checked/unchecked for saving/not saving using the checkboxes provided in this column. The icon buttons in the top left corner (from left to right) of the window provide shortcuts to modify the default selection:

  • Select Scene and Modified Data,
  • Select Modified Dataonly,
  • Select All, and
  • Select None.

These icons are shown and annotated below, under the SaveData illustration. Any individual checkbox can also be used to modify the selection state.


Converting to other data formats: Any dataset can be converted to a different (supported) format by editing the filename extension. Note that some format conversions may be lossy. To change formats, select from the list provided in the File Format column. A dataset's filepath and filename may be edited to save the dataset in a location different from that specified.

Supported formats: Formats that can be saved include:

  • Volumes
    • NRRD (.nrrd)
    • NRRD (.nhdr)
    • MetaImage (.mhd)
    • MetaImage (.mha)
    • VTK (.vtk)
    • Analyze (.hdr)
    • Analyze (.img)
    • Analyze (.img.gz)
    • BMP (.bmp, .BMP)
    • BioRad (.pic)
    • Brains2 (.mask)
    • GIPL (.gipl, .gipl.gz)
    • JPEG (.jpg, .jpeg, .JPG, .JPEG)
    • LSM (.lms, .LSM)
    • NifTI (.nia)
    • NifTI (.nii, .nii.gz)
    • PNG (.png, .PNG)
    • Stimulate (.spr)
    • TIFF (.tiff, .tif, .TIFF, .TIF)
  • Models
    • Poly Data (.vtk)
    • XML Poly Data (.vtp)
    • STL (.stl)
  • Fiducials
    • Fiducial List CSV (.fcsv)
    • Text (.txt)
  • Transforms
    • Transform (.tfm)
    • Text (.txt)

Saving data: Finally, selecting the Save Selected button will launch the scene/data saving process, and Cancel will abort it.

File->Close Scene:

This command closes the current scene and resets the application state.

File->Exit

This command exits Slicer.

Edit menu

Edit->Set Home

This command sets a user's 'home module', which is the module displayed by default each time the Slicer application is started. The home module is saved in the Application Registry.

Edit->Undo

This command undoes the history of undoable commands, from last to first.

Edit->Redo

This command re-does the history of commands most recently undone, from last to first.

Edit->Edit Box

This command raises the Edit-box, a lightweight image editing tool.

Edit->New Fiducial List

This command creates a new list of fiducial points.

View menu

View->Manage Extensions:

This Extensions Management Wizard provides status and information about available extensions for 3.4

View->Cache & RemoteIO Manager:

The Cache and Remote Data Handling interface provides status and information about all remote data transfers, and allows some control over the local cache. Remote I/O and Cache preferences can also be set in the Application Settings Interface, described next. Whether you set preferences here or there, they are saved in the Application Registry so that your settings are preserved each time you start up the Slicer Application.

The pop-up interface is shown below. Checkbuttons at the top left provide choices about download and caching behavior, and the cache directory, cache size limit, and cache free space buffer can be set at the interface bottom. Icon buttons at the top right allow global operations on all data transfers (cache clearing and transfer cancellation) and display updates (transfer panel cleanup and cache report refreshing). Each data transfer is listed in the transfer panel along with some information about its type and status.


Below, all of the Cache & Remote Data I/O Manager icons are listed and described:


View->Application Settings Interface:

The Application Settings interface provides options for saving many of Slicer's Interface and Remote Data Handling options to the Application Registry, so they are preserved across sessions. The first time you start the application, it is recommended that you browse these settings and select options that you prefer. Some of the options provided in the interface are listed below:

  • Slicer Settings allow you to specify whether Slicer should confirm on delete, and set the location for other applications that Slicer may need to use (Firefox, Zip, etc.).
  • Font Settings options allows you to choose among several fonts and relative font sizes to be displayed in the GUI.
  • Module Settings options allow you to select a Temporary directory, a home module (that will be displayed each time Slicer starts up) and whether Slicer should include loadable and command-line modules on startup.
  • Remote Data Handling Settings options allow the specification of Cache and Remote Data I/O settings which are also configurable from the Cache and Remote Data I/O Manager described above.


Window menu

Window->Hide/Show Main Panel (Hotkey = F5):

This command collapses or expands the GUI panel and allows Slicer's viewers to occupy the entire application window, as shown below in Application Layouts figure C.

Window->Hide/Show Bottom Panel (Hotkey = F6):

This command collapses or expands the bottom split-panel in which Slice viewers are conventionally displayed, allowing the 3D view to occupy the vertical extent of the application window. The behavior of this command will vary, and may not be appropriate, depending on the selected layout (-- available layouts are described below.)

Window->Toolbars:

This command allows hiding or exposing sub-toolbars in the application toolbars, including the Load/Save toolbar, the undo/redo toolbar, the layout configuration, and the mouse mode toolbar.

Window->Log Window (Hotkey = Ctrl+Alt+E):

This command raises the error log display.

Window->Tcl Interactor (Hotkey = Ctrl+T):

This command raises the Tcl interactor for scripted interaction with Slicer data:


Help menu

Help->Browse Tutorials:

Raises Slicer's training page in mozilla firefox web browser (Note: you will need to have specified the location of Mozilla Firefox executable in Slicer's Application Settings Interface: Application Settings->Slicer Settings).

Help->About Slicer3:

Provides a description of the Slicer3 effort and its support.

Help->Keyboard Shortcuts:

Raises a window that lists commonly-used keyboard shortcuts.

Feedback menu

Note: for all commands in the Feedback Menu, you will need to have specified the location of your Mozilla Firefox executable in Slicer's Application Settings Interface: Application Settings->Slicer Settings) so Slicer knows how to launch the web browser.

Feedback->Report a Bug:

This command opens your Firefox web browser to http://www.na-mic.org/Bug/my_view_page.php so that any bug you encounter can quickly and easily be reported. Be sure to select the appropriate category for the bug and estimate its severity. It's recommended that you provide as much information as you can so that the bug can be reproduced by the development team.

Feedback->Report a Usability Issue:

This command opens your Firefox web browser to http://www.na-mic.org/Bug/my_view_page.php so that any usability issue you encounter can quickly be captured. Be sure to select the "usability" category for the issue and estimate its severity. We request that you describe the way in which the usability issue is impacting your work so that the usability and development team can address the issue appropriately. Suggestions and ideas are welcome!

Feedback->Make a Feature Request:

This command opens your Firefox web browser to http://www.na-mic.org/Bug/my_view_page.php so that community feature requests can easily be collected. We request that you clearly mark your submission as a "feature request" in the description field of the form.

Feedback->Community:

This command opens your Firefox web browser to http://www.slicer.org/slicerWiki/index.php/Slicer3:VisualBlog where you can post screenshots of interesting ways you are using the Slicer3 software package in your research and share them with the Slicer community.

Application Toolbar

Slicer's toolbar provides quick access to centralized load / save functionality, options for searching for and navigating among modules, undo/redo capability, ability to select different application layouts and change among mouse modes. Using and indicating mouse modes in Slicer is still under development, so this part of the toolbar will likely change in future releases. For now, "Mouse place" is used to create new objects, like fiducial points. "Mouse pick" is intended for selecting objects. "Transform view" is the default mode, used to pan, zoom and rotate the camera in the 3D viewer. Individual icons in the toolbar are labeled below.


The Window->Toolbars submenu allows showing/hiding parts of this toolbar, including the Load/Save toolbar, the undo/redo toolbar, the layout configuration, and the mouse mode toolbar.

Module GUI Panel

Conventions and window position:

By default, the Module GUI panel is located on the left of the application window. The panel that contains the Module GUI, Slices Control GUI and 3D Viewer Control GUI (both described below) can be moved to the right side also by selecting that option from the layout menu on the toolbar, if that working configuration is found to be more convenient. Each Slicer module populates the Module GUI panel with its interface; all modules have a Help & Acknowledgement frame that presents brief help text and pointers to additional information, and appropriate acknowledgement for the work as shown in the figure below.

Collapsing and expanding frames:

Each module GUI contains its functionality inside collapsing and expanding frames, also shown below, to minimize the need to scroll among individual blocks of functionality within a module. The frames can be collapsed or expanded by clicking in the title frame. The Slices Control and 3D Viewer Control GUI panels also can be collapsed to make more space for a module GUI.

Brief Help Text and Module Attribution and Acknowledgements can be found in the topmost panel in any module.


Slice Viewer Control Panel

The Slice Viewer Control Panel allows configuration of all Slice GUIs at once. The functionality represented by icons in Slicer Version 3.2 is described below:


3D Viewer Control Panel

The 3D Viewer Control Panel provides many options for configuring the 3D viewer. The left-most panel allows the view to be oriented along any of the six principle axes (Superior, Inferor, Anterior, Posterior, Left or Right). Axis symbols highlight on mouse-over. The functionality included in the panel represented by icons and checkboxes is described in the diagram below. Finally, the rightmost viewer duals as a birds-eye-view display of the entire scene, or a slice magnifier window when the mouse moves over any of the slice windows.


Stereoscopic and Kinetic Depth

The 3D Viewer provides a number of options for assessing depth and layout in complicated scenes. The stereo viewing pull-down menu, labeled "M" in the schmatic above, provides several stereo viewing options, and the view rock (labeled "O") and view spin (labeled "N") animate the scene to help clarify feature shape, depth and layout.

Screen Captures ("Screenshots")

Screen captures of the 3D Viewer can be saved by selecting the icon labeled "D" in the schematic above. This raises the Screen Capture interface (shown below) that allows you to specify a save destination, a filename, version number, image format and exposes the option for overwriting existing files.


Scene Snapshots

Scene snapshots provide a way to record particular compositions of a scene. These compositions are saved with the scene and can be restored for later inspection. Among the things recorded in each snapshot are:

  • Model visibility,
  • Volume display threshold, window and level settings,
  • Slice visibility in the 3D view.

To create or restore a scene snapshot:

  • Click on the camera icon (labeled "H" in the schematic above) to record a scenesnapshot.
  • Use the pull down menu (labeled "L" in the schematic above) to select from a list of existing snapshots.
  • Click on the arrow icon to restore the snapshot.
  • You can also click on the trashcan icon to delete the snapshot.

Slicer Viewers

In this section, Slicer's Slice Viewers and Main 3D Viewer are described, and options for configuring their layout and display of information.

Slice Viewers (and their Controllers)

Slicer's three main Slice Viewers are color-coded Red, Yellow and Green. By default, these correspond to Axial, Saggital and Coronal slice orientations respectively, but this can be modified by a user. In Slicer's Compare View layout (described a little later), the Slice Viewers are color-coded Orange.

All Slice viewers have their own Slice Controller, which can be expanded or collapsed by clicking in the colored bar at their top, for convenience. The Red Viewer is shown below, expanded and collapsed as described. Note that corner annotations are displayed when the mouse hovers over any viewer.


The Slice GUI Controller provides ways to manipulate its individual Slice View, and provides ways to manipulate all "linked" Slice Viewers. Below is a schematic of the individual controls provided with each Slice Viewer; these, and "linked" control are described (briefly) in subsequent sections.


Slice orientation and Oblique reformats

On each Slice Viewer, an Orientation menu button in the upper left of the control panel provides the option to display an "Axial", "Coronal", "Sagittal", or "Reformat" slice orientation in the Viewer.

Slice viewers can be used to specify oblique reformats in two ways:

  • first by using the "Reformat" orientation and CTRL-Right-Button-Move (subject to change and something of an "art" to control).
  • and second by selecting the Show Reformat Widget option (SliceControllerShowReformatWidget.png) from the Slice Controller's More Options menu (SliceControllerMoreOptions.png), and interacting with the widget. The widget can be toggled off using the menu's Hide Reformat Widget option (SliceControllerHideReformatWidget.png). Using this widget's interactive box & arrow to reformat the slice plane (illustrated below) causes the Orientation selector to display the "Reformat" orientation, and the Slice Viewer to display the reformatted plane.

Linking Control of Slice Viewers

Control of slice viewers can be linked to save time setting them up and manipulating their display individually. The icons shown below, found in the leftmost of each Slice Controller's toolbar, toggle linking and unlinking of the viewers.


When Slice Viewers are linked, the "linked" icon (AppDoc-SlicesLinked.png)is displayed. Clicking the icon-button will unlink the Viewers, and will display the "Unlinked" icon (AppDoc-SlicesUnlinked.png). When the Slice Viewers are linked, many but not all of the controllers' options apply to all viewers. The following controls are linked:

  • Orientation
  • FG, BG, Label selectors
  • Visibility
  • Fit To Window
  • Adjust Label Map Opacity
  • Show/Hide Label Volume Outlines
  • Show/Hide Reformat Widget

Slice Plane Visibility in 3D Viewer

The Slices shown in each of the Slice Viewers may be displayed in the Main 3D Viewer as well. Their visibility in the 3D Viewer is controlled with the Visibility icon button in the Slice Controllers, as shown in the figure below. When Slices are visible in the 3D Viewer, the "visible" icon (AppDoc-SlicesVisible.png)is displayed. Clicking the icon-button will hide the Slices in the 3D Viewer, and will display the "Invisible" icon (AppDoc-SlicesInvisible.png).


Other Slice GUI options

The Slice controllers offer other options as well, available under the More Options menubutton (SliceControllerMoreOptions.png). Options here include some of those available in the Slices Controller GUI and some additional. These options, each shown in the figures A - H below, include:

  • A. Fit a slice to the size of a Viewer's window
  • B. Adjust the opacity of a label map
  • C. Show/Hide outlines around labels in a label map
  • D. Show/Hide the Slice Reformat Widget
  • E. Select options for compositing slice layers
  • F. Choose manual or automatic slice spacing modes
  • G. Create a lightbox view within a Slice Viewer
  • H. Adjust the display of Foreground, Background or Label layers.


Configuring Slice Viewers when the Controllers are collapsed

In Slicer's Slices Module, all Slice Viewers' Slice Controllers are arrayed in a vertical stack; When screen real estate must be maximized, the individual Slice Viewers' Controllers can be collapsed and the GUI panel's controllers can be used to manipulate the Viewers instead. The Slices Module's GUI panel is shown below.




Main 3D Viewer

Default elements and their visibility

Slicer's Main 3D Viewer displays a three-dimensional view of the scene. By default, the scene includes some elements for spatial reference including a 3D wireframe cube centered around the origin (0,0,0) and labels along each of the principle axes (Right, Left, Superior, Inferior, Anterior, and Posterior). Slicer's default blue background color, as well as the visibility of the spatial references in the view, can be modified in the View Control GUI panel's visibility menu, as shown below:


Interacting

You can adjust the view in the Main 3D Viewer using the mouse or keyboard (for information on the latter, please see the Keyboard Shortcuts section):

  • Zoom in: Right-mouse-button click-and-drag toward you. (Imagine pulling the scene closer)
  • Zoom out: Right-mouse-button click-and-drag away from you. (Imagine pushing the scene away)
  • Pan (shift the look-at point): Middle-mouse-button click-and-drag left, right, up or down.
  • Rotate Around a look-at point: Left-mouse-button click-and-drag.

If you need more precise control, or if the view gets into some hard-to-manage configuration, the View Control GUI panel can be used to reset the look-from and look-at point in a manageable way:


Window and layout configurations

Slicer can be configured to show or hide the Module GUI panel, and to display it on the left or right side of the Viewers. These options are accessed as follows:

  • Show/Hide Module GUI Panel: F5-key or Toolbar's Layout Menubutton (AppDoc-layoutIcon.png)->Toggle GUI panel visibility
  • Move Module GUI Panel to the Left/Right: Toolbar's Layout Menubutton (AppDoc-layoutIcon.png)->Toggle GUI panel L/R
  • Show/Hide Bottom Panel: F6-key (this option is only really useful in Slicer's Conventional View)


In addition, there are a number of ways to arrange the Slice and 3D Viewers. We hope to offer a more extensible suite of configuration options in the future. At present, these options are available from Slicer's Application Toolbar's Layout Menubutton (AppDoc-layoutIcon.png), and are illustrated below:


Error Log

Finally, the application has an accessible error log in the event of unexpected behavior or error messages -- this readout is useful for reporting bugs or usability problems back to the Slicer Development Team. The error log can be raised in the following ways:

  • Typing Ctrl+Alt+E
  • Menubar's Window->Error Log
  • Clicking the Error Log icon, which is displayed only if any error reports are present, and as shown below.




Status Text and Progress Bar

For some operations, loading, saving or processing may take awhile; Slicer may post status text at the bottom of the Application's window (shown below) that helps you to understand what it's working on. This readout isn't available as often as it should be; we hope to address this usability issue in future software releases. If you encounter any situation in which a status update would be especially useful but none exists, please report your discovery to Slicer's bug tracker as a usability issue.


Progress is also displayed during processing operations. One progress readout commonly used by command-line modules is found in the lower right corner of the Slicer Window in the Progress Gauge, shown below:


Some Slicer modules also use a pop-up progress dialog, which assumes "focus" and prevents you from interacting with Slicer until the processing is finished; the dialog appears as below:
