Latest revision as of 02:25, 27 November 2019
Home < Slicer3:UIDesign:WorkingProblems:SlicerFlexibleLayout:UXPContents
User experience design for Slicer flexible layouts
Back to Flexible Layouts Overview
Selecting an intial grid
In a custom layout tool, a user first selects the number of rows and columns they want to begin with by either
- clicking and dragging on a template or
- entering parameters into entry widgets
Splitting a "pane" in the grid
Subsequent modifications apply to the layout containing the specified number of rows and columns.
User can modify layout by clicking on
- individual panes, or
- pane dividers,
but outer-most edges can not be modified.
Expanding a "pane" in the grid

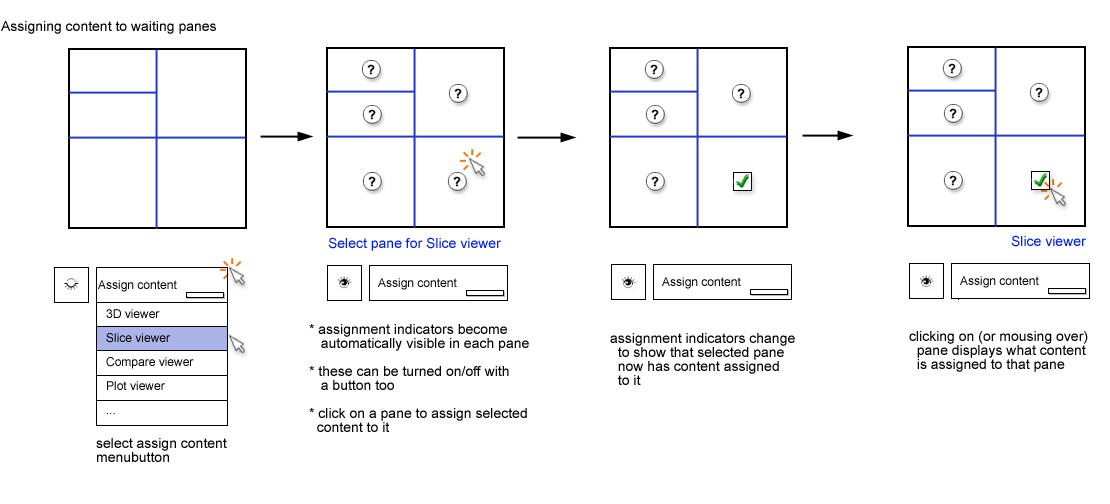

Assigning content to panes
Evolving tree-based representation of the layout
