Slicer

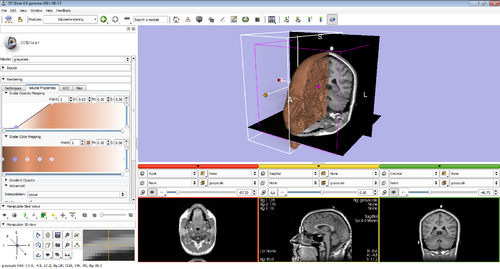

Slicer4 with Volume Rendering enabled	Slicer4 with a Diffusion Tensor Volume loaded
Slicer with Qt only	Slicer with KWWidgets + Qt

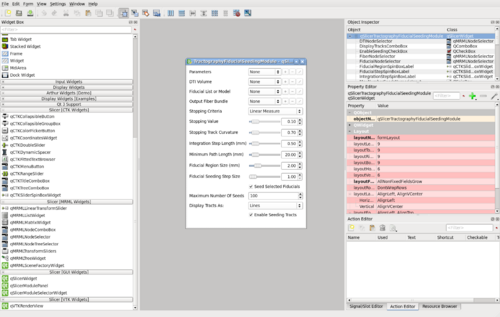

Qt Designer to design modules

Modules

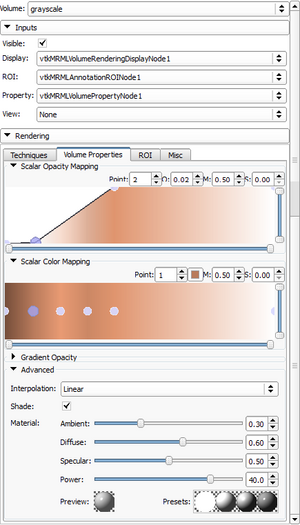

Volume Rendering Module

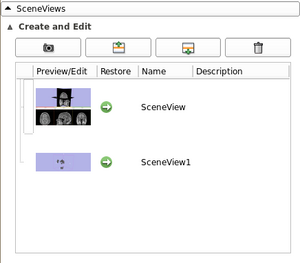

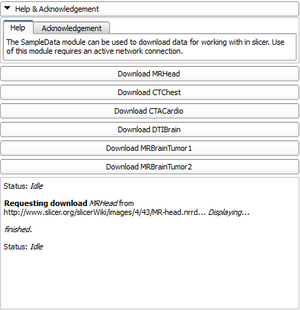

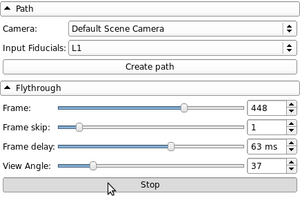

Sample Data Module	Endoscopy Module	SceneViews Module

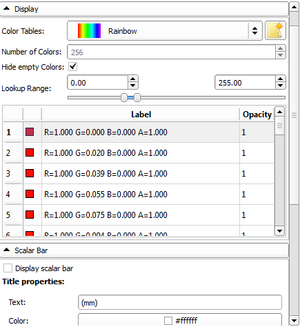

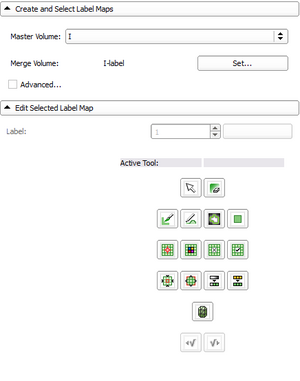

Editor Module	Models Module	Color Module

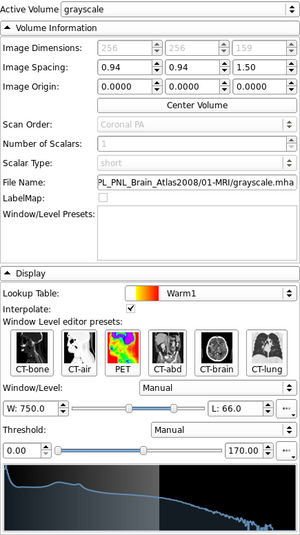

Volumes Module	Volumes Module (DTI volume)

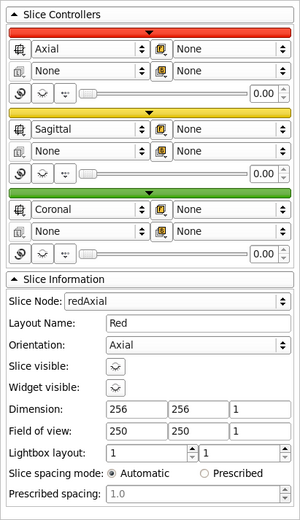

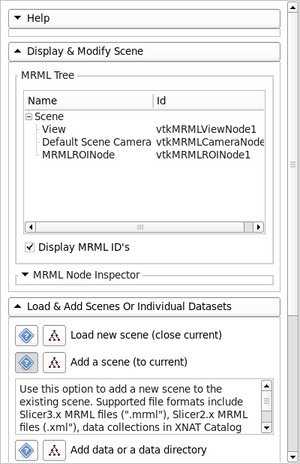

Slice Controllers Module	Data Module

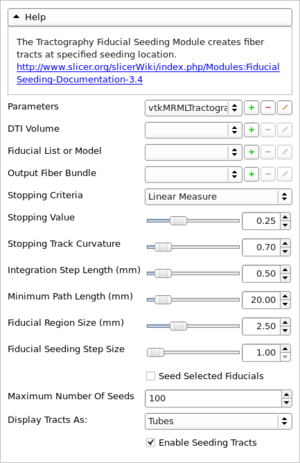

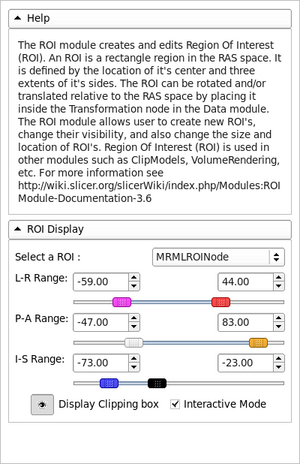

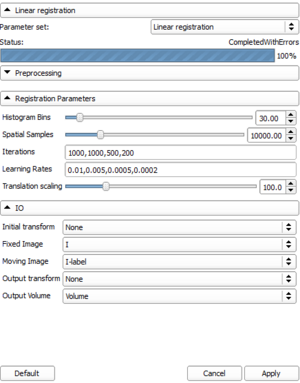

ROI Module	Tractography Module	Linear Registration Module (CLI)

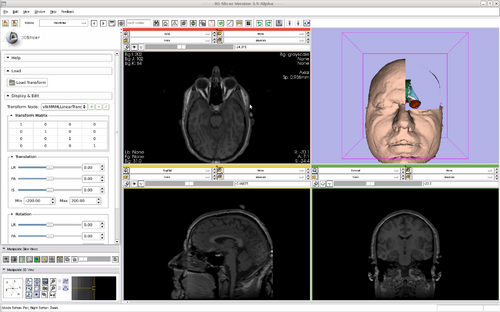

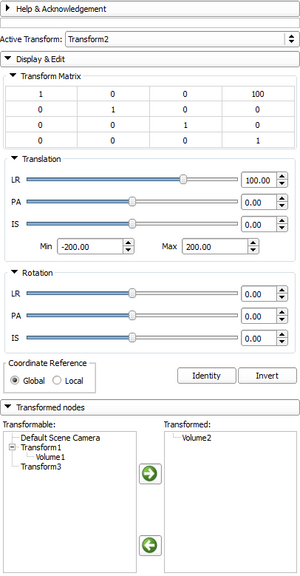

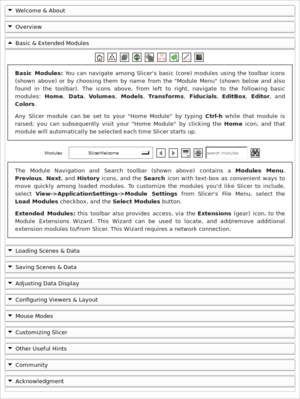

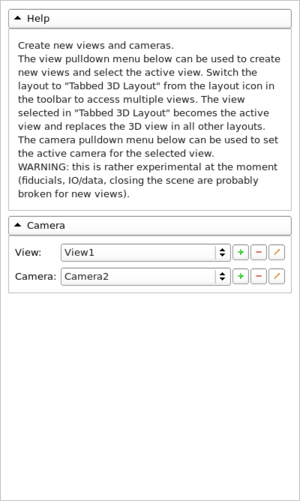

Welcome Module	Cameras Module	Transforms Module

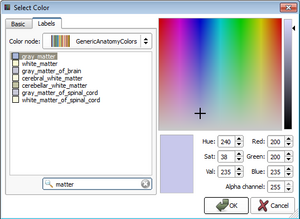

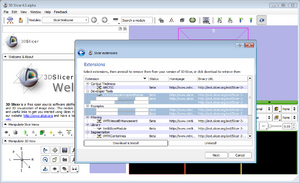

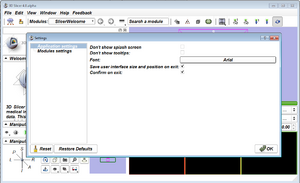

Extensions Management dialog	Application settings dialog	Color picker dialog

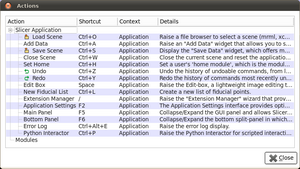

Shortcuts dialog	Standard File Dialog (using Volumes reader)	Standard File Dialog (using Scalar Overlay reader)

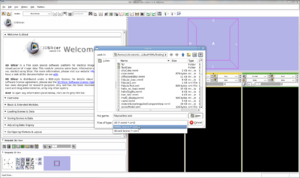

Standard File Dialog	Add Data Dialog	Save Data Dialog

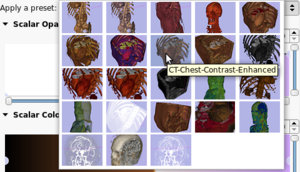

qSlicerPresetComboBox		A combobox to select presets
qMRMLCheckableNodeComboBox		A combobox to select multiple nodes

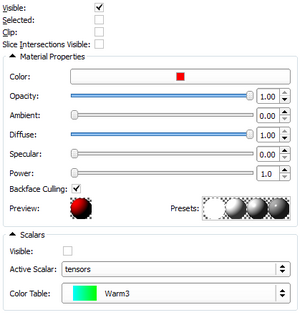

qMRMLModelDisplayNodeWidget		A widget that represents any vtkMRMLModelDisplayNode

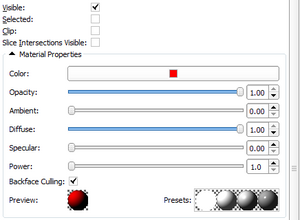

qMRMLDisplayNodeWidget		A widget that represents any vtkMRMLDisplayNode

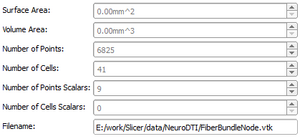

qMRMLModelInfoWidget		A widget that shows model internal data properties

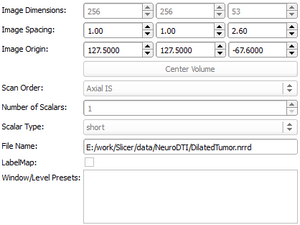

qMRMLVolumeInfoWidget		A widget that shows volume internal data properties

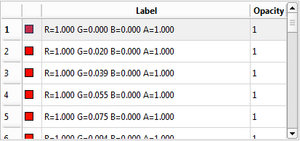

qMRMLColorTableView		A table view to display a color table model

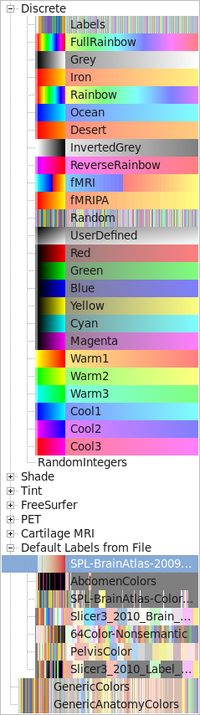

qMRMLColorTableComboBox		a tree combobox to choose a color table node
qMRMLThreeDViewsWidget		a toolbar to control 3D views
qMRMLSlicesControllerToolBar		a toolbar to control slices options

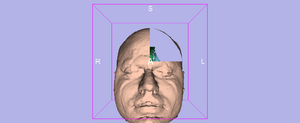

qMRMLThreeDView		A 3D vtk render window

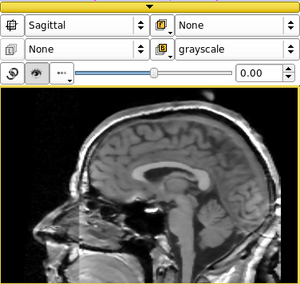

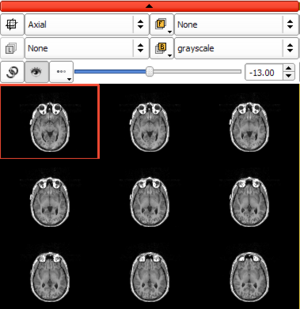

qMRMLSliceWidget		a 2D vtk render window with a controller

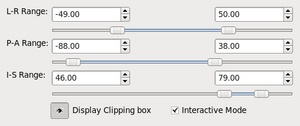

qMRMLROIWidget		3 range sliders to define a Region of Interest
qMRMLListWidget qMRMLTreeWidget qMRMLTreeProxyModel qMRMLSceneModel qMRMLTransformProxyModel		A collection of QObjects to communicate with a vtkMRMLScene
qMRMLMatrixWidget		A QTableWidget specially conceived for displaying/editing matrices
qMRMLNodeComboBox		A QComboBox containing vtkMRMLNodes
qMRMLVolumeThresholdWidget		A widget to set the threshold of a vtkMRMLVolumeNode

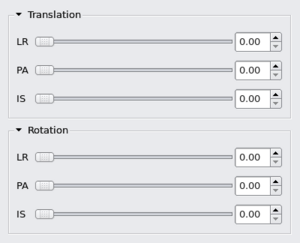

qMRMLTransformSliders		A collection of qCTKSliderSpinBox for setting transform properties (translation or rotation)
qMRMLWindowLevelWidget		A widget to set the window level of a vtkMRMLVolumeNode

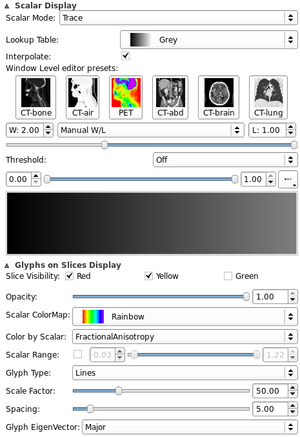

qSlicerDiffusionTensorVolumeDisplayWidget		Display widget for vtkMRMLDiffusionTensorVolume

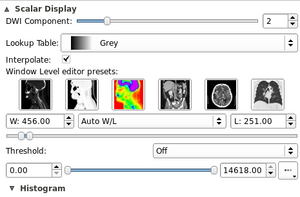

qSlicerDiffusionWeightedVolumeDisplayWidget		Display widget for vtkMRMLDiffusionWeightedVolume

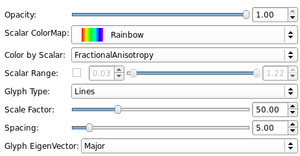

qSlicerDTISliceDisplayWidget		Widget to control vtkMRMLDiffusionTensorVolumeSliceDisplayNode
qSlicerMouseModeToolBar		A toolbar to select mouse modes

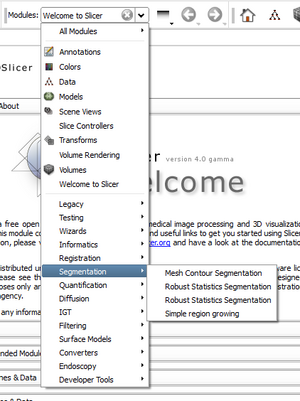

qSlicerModuleSelectorToolBar		A toolbar to select modules

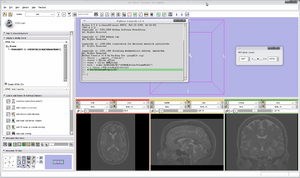

Double Slider example
